CLIENT

Leyden High School District 212

LOCATION​

Franklin Park, IL

PROJECT FEATURES
  • Multi-Purpose Field – Synthetic Turf
  • Walking Track
  • Tennis Courts (8)
  • Parking Lot Rehabilitation
  • Stormwater Improvements
SCOPE OF SERVICES
  • Conceptual Planning
  • Preliminary Engineering
  • Final Engineering
  • Stormwater Management
  • Construction Observation
  • Construction Layout
  • NPDES Inspections
  • As-Builts

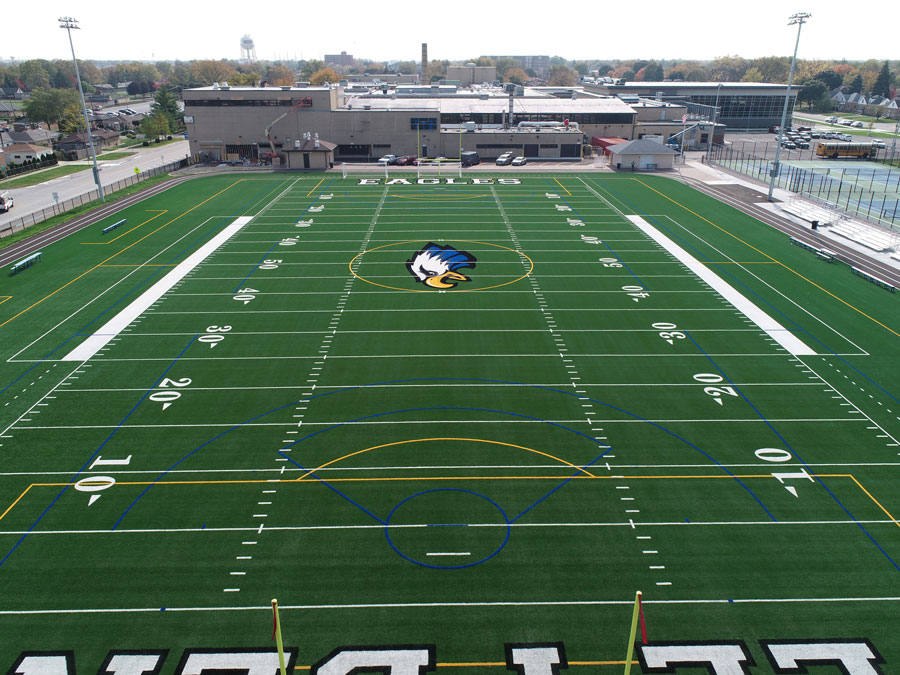

Aerial view of a newly constructed football field with artificial turf, featuring yard markers and an eagle logo at center.

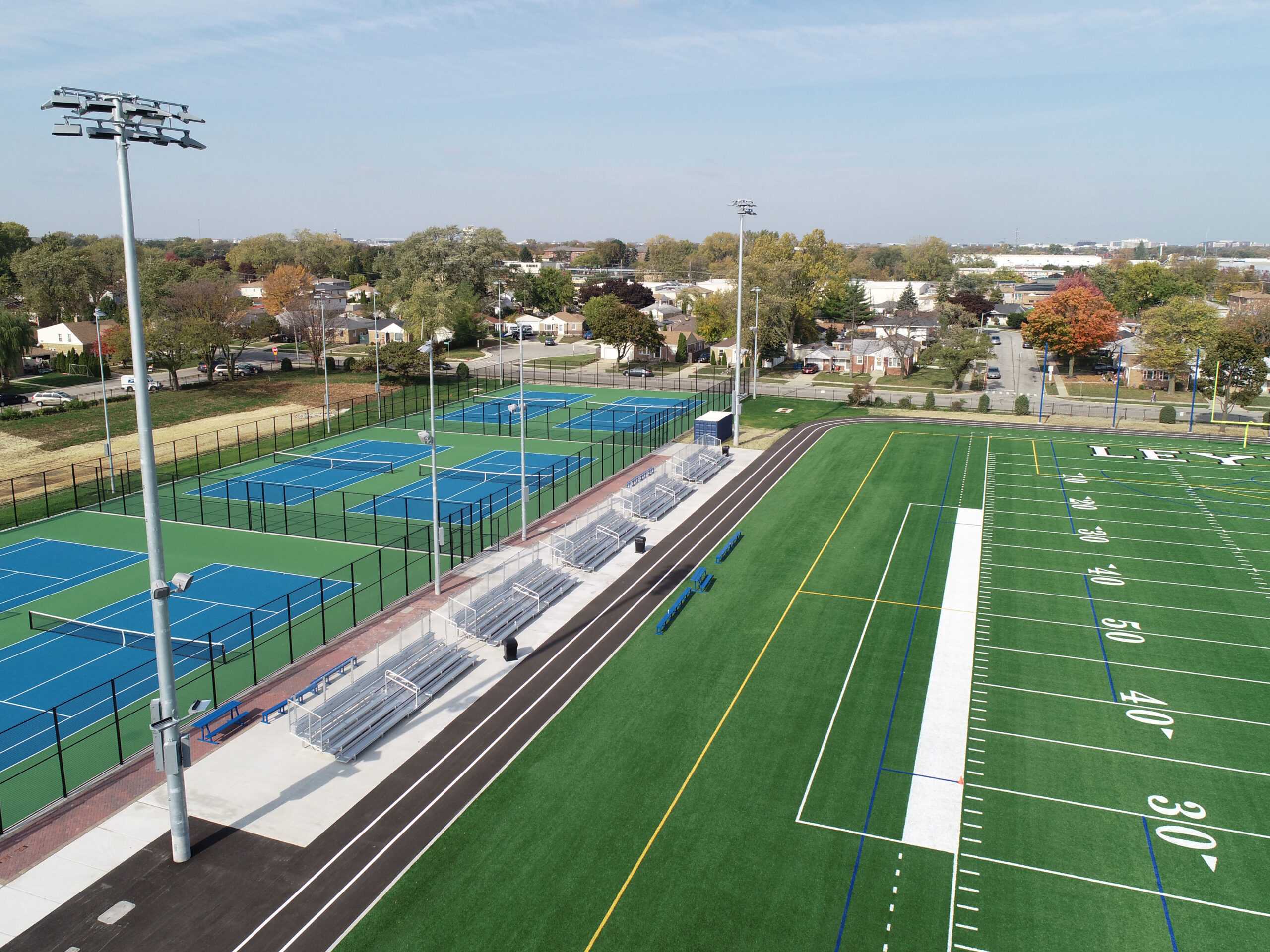

Aerial view of a multi-sport facility featuring tennis courts, a soccer field, bleachers, and surrounding residential areas.

Gewalt Hamilton Associates (GHA) completed the design, permitting and construction phase services for the East Leyden High School Multi-purpose Athletic Field and Tennis Courts.

The project included improvements to the north half of the school campus and built upon a 2017-2018 school enlargement for which GHA prepared site engineering and surveying. The athletic field/courts project encompassed approximately 5.4 acres of the 17.1 acre property.

The synthetic turf field was built up to provide stone void storage beneath the outskirts of the field and allow overland flow paths the existing stormwater detention basin constructed in 2018. Volume control storage was provided within a 20’ stone trench beneath the walking track.

A large diameter 100-year overflow pipe had to be installed beneath the tennis courts to provide basin overflow to the site emergency release location.
